Menşe yeri: | Shenzhen Çin |
---|---|
Marka adı: | OPTFOCUS |
Sertifika: | CE |
Model numarası: | OFSB-4512-120LD |
Min sipariş miktarı: | 1 çift |
Fiyat: | USD 39.99 |
Ambalaj bilgileri: | Satıcı standart ihracat paketi |
Teslim süresi: | Ödeme aldıktan sonra 3-7 gün içinde |
Ödeme koşulları: | L/C, T/T, D/A, Western Union, Paypal |
Yetenek temini: | 10000 adet bir ay |
Ürün adı: | fiber alıcı-verici,SFP Alıcı-verici | lif türü: | SF-SM |
---|---|---|---|
Başvuru: | FTTH FTTB FTTX Ağı, Telekomünikasyon | Çalışma sıcaklığı: | 0 °C ~ 70 °C |
Güç kaynağı: | 3.3V | anahtar kelimeler: | sfp alıcı-verici üreticileri |
Konektör Tipi: | SC | tarih oranı: | 1.25 Gb/sn |
DDM: | İsteğe bağlı |

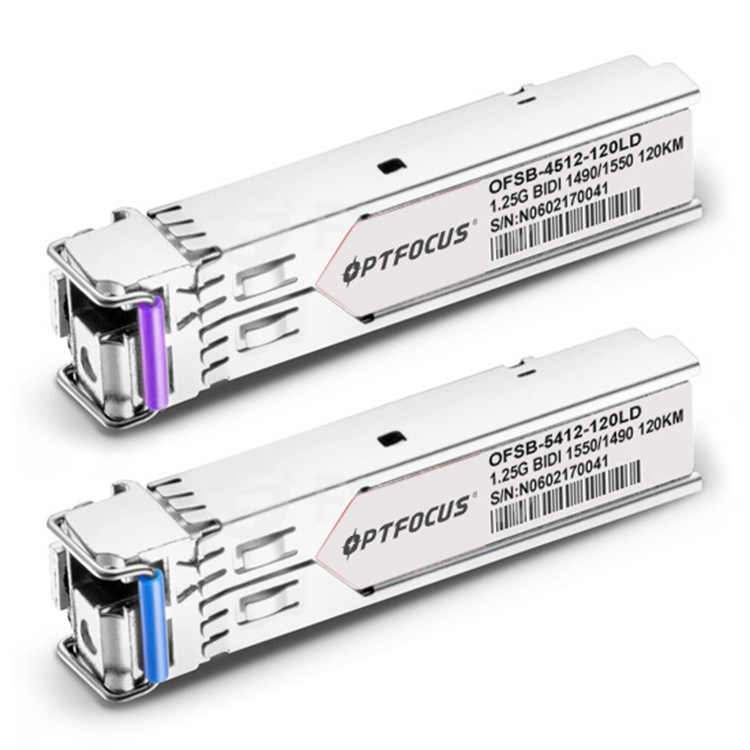

OPTFOCUS sfp Optical Transceiver MANUFACTORY 1.25G SFP Optical Transceiver OFSB-4512-120LD BI-BD Single fiber SM SC 120KM 1490nm/1550NM
SFP Optical Transceiver Details |
|
Model Number: OFSB-4512-120LD | Connector:SC |
Type: Fiber Optic Transceivers | Diagnostics:digital |
Place of Origin: Shenzhen, China | TX Power(dBm):0~+4 |
Brand Name: OPTFOCUS | Temperature:0°C~70°C |
Network:Wired LAN | Voltage supply:3.3v |
Wavelength:1490nm/1550NM | RX Sens(dBm):<=24 |
Data Rate:1.25Gb | Use:FTTX |
Working Distance:120km | Certification:FCC |
SFP Optical Transceiver Transmitter Characteristics | |||||
Parameter | Symbol | Min. | Typ. | Max. | Units |
Optical Transmitter Power | P0 | 6 | 7.5 | 11 | dBm |
Optical Transmitter Power off | POFF | - | - | -39 | dBm |
Output Center Wavelength | λ | 1480 | - | 1500 | nm |
Output Spectrum Width | Δλ | - | - | 1.0 | nm |
Side Mode Suppression Ratio | SMSR | 30 | - | - | dB |
Extinction Ratio | ER | 9 | - | - | dB |
Optical Rise Time | - | - | - | 260 | ps |
Optical Fall Time | - | - | - | 260 | ps |
Optical Eye Diagram | Compliant with IEEE Std 802.3ahTM-2004 | ||||
Tolerence to Tx Back Reflection | - | -15 | - | - | dB |
Data Rate | - | - | 1.25 | - | Gb/s |
Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | mV |
Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm |
Tx_fault Output Voltage- High | VOH | 2.4 | - | - | V |
Tx_fault Output Voltage- Low | VOL | - | - | 0.4 | V |
Tx_Dis Input Voltage- High | VIH | 2.0 | - | - | V |
Tx_Dis Input Voltage- Low | VIL | - | - | 0.8 | V |
SFP Optical Transceiver Image details
Advantage of our company :
Packaging & Delivery(SFP Optical Transceiver ) | |
Selling Units:Single item | Single package size: 0.8X0.3X0.3 cm |
Single gross weight:0.100 kg |
Package Type:carton |
SFP Optical Transceiver Certification
FQA
Q:Do you have MOQ?
A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.
Q:Can you offer a better price?Any discount?
A:Yes,surely. We’re source factory and providing reasonable price.
Q:What is your warranty period?
A:Different products have different warranties.This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
Q: how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
